Dispensers and Shakers

Helios Tinting team can help you with their experience and knowledge when choosing the right mixing equipment. The choice is personalized to the customer possibilities and needs.

There are many factors, which influence on dispenser selection like type and number of colorants, colorant consumption, type of customers, possibility to widen their range, logistics, price…Dispensers can be technically divided according to type of the pump: bellow pump, piston pump and gear pump technology and they can have sequential or simultaneous dosing.

We are developing and producing different sets of colorants. Each set is tested on different dispensers with various pump technology. Therefore, we can suggest to our customer, which pump technology is best for them.

Contact us for more information.

DECORATIVE COLORANTS: HG MIX ACRYLIC & HG MIX SOLVENT

For decorative coatings we suggest automatic dispensers with bellow or piston pump. Each has its own advantages and disadvantages.

PRODUCER NAME PUMP Max nm. of
canisters		 Canister size (L) Intended mixing
amount / day
COROB D200 below 16 2,5 upon 300 L
FAST&FLUID X Smart piston 16 2,25 upon 300 L
X Protint piston 16 12×2,3; 4X4,6 upon 300 L
HARBIL 180 piston 24 2,3 – 4,6 upon 300 L
HARBIL 480 piston 32 2 – 3 – 6 – 10 upon 500 L
SANTINT A2 piston 16 2,3 upon 300 L
HERO EURECA piston 32 3 – 5 upon 500 L

INDUSTRIAL COLORANT: UNIHEL MIX, BW MIX

For industrial colorants we recommend automatic dispensers with piston and gear technology.

PRODUCER NAME PUMP Max nm. of
canisters		 Canister
size (L)		 Intended mixing
amount / day
COROB EVO PWR gear 24 3 – 4 – 6 -15
9 – 20		 400 – 800 L
FAST&FLUID HARBIL180 piston 24 2,3 – 4,6 upon 300 L;
smaller can
HARBIL480 piston 32 3 – 3 – 6 – 10 upon 500 L;
HARBIL680 piston 32 2 – 3 – 6 – 10 – 20 400 – 800 L;
HERO NEWTON piston 24 5 – 10 – 20 upon 800 L;
greater can
HERO EURECA piston 2,5 – 5 upon 500 L

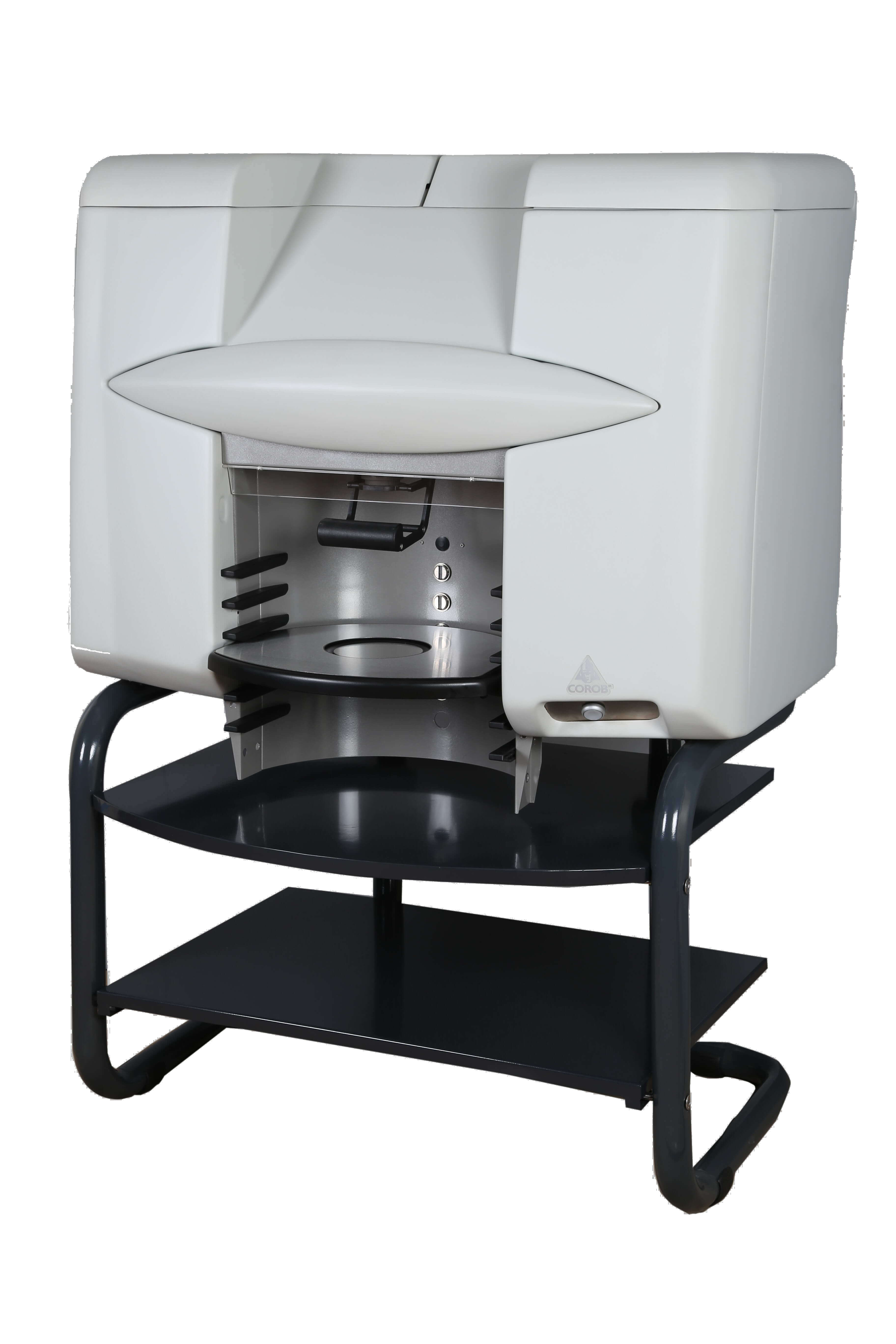

COROB BANCO 16 – 24

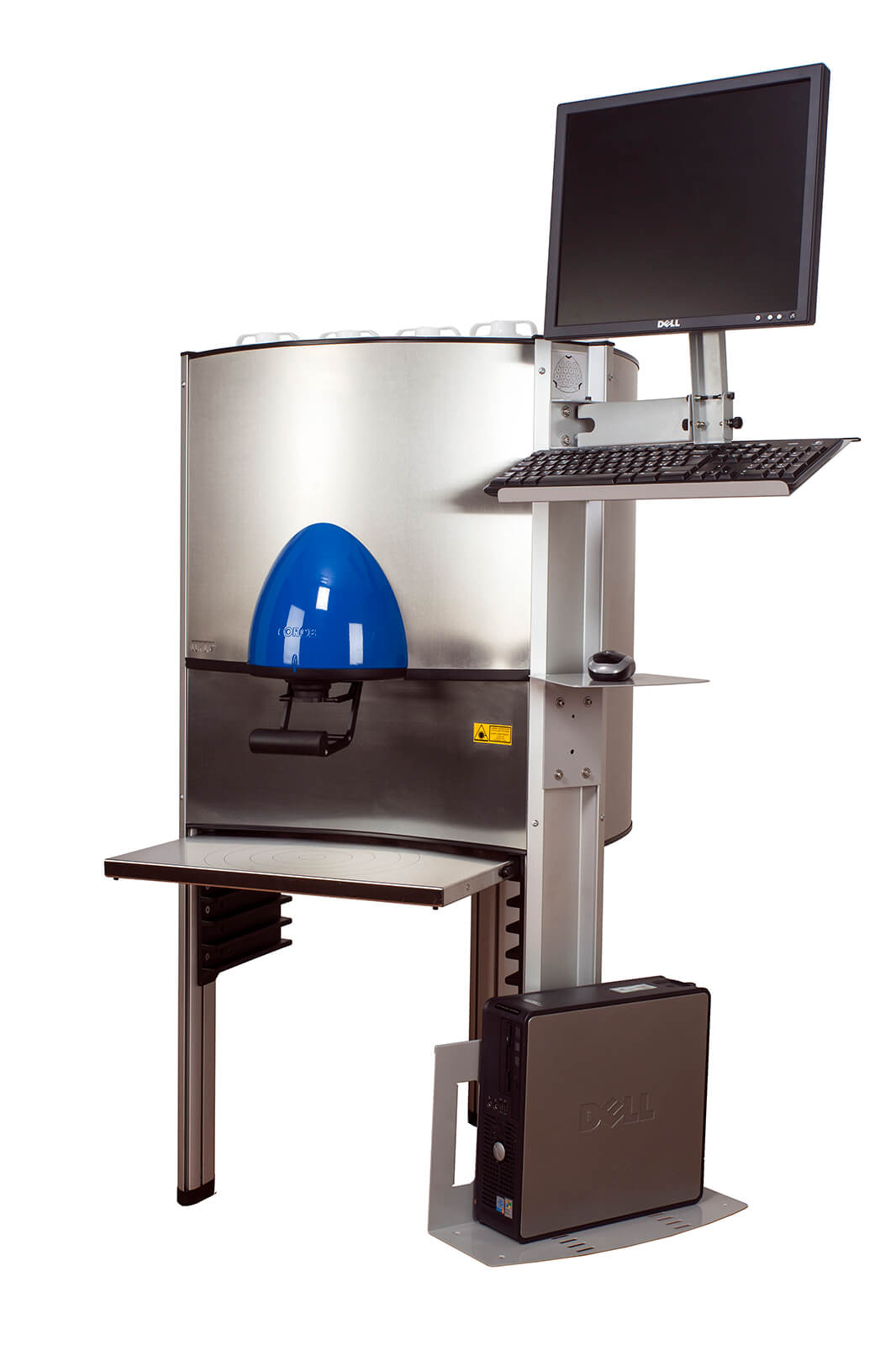

COROB D200

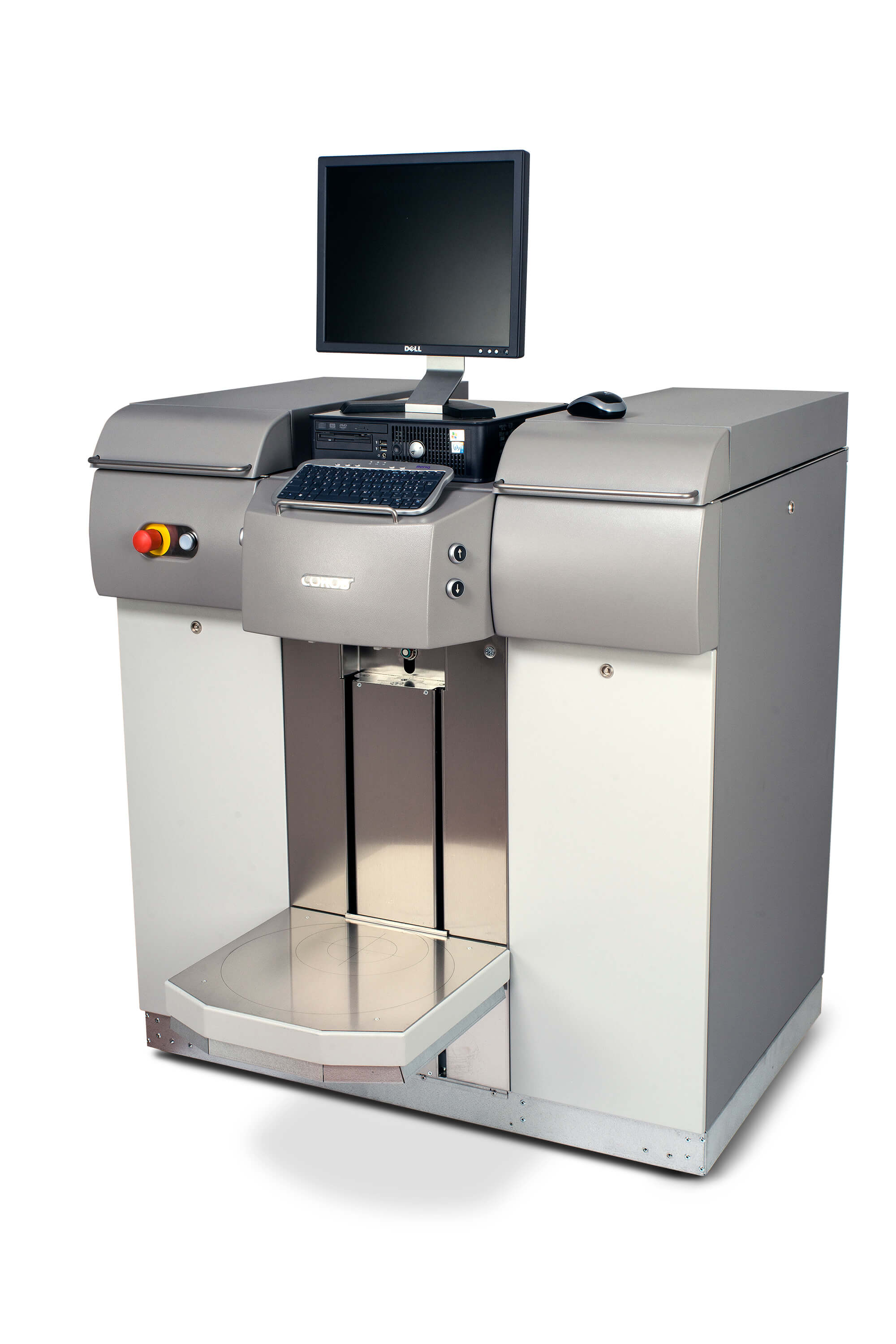

COROB D600

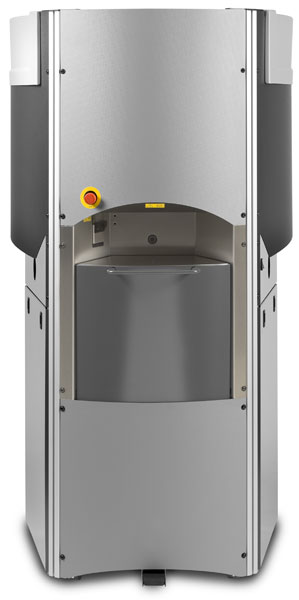

F&FM HARBIL 150

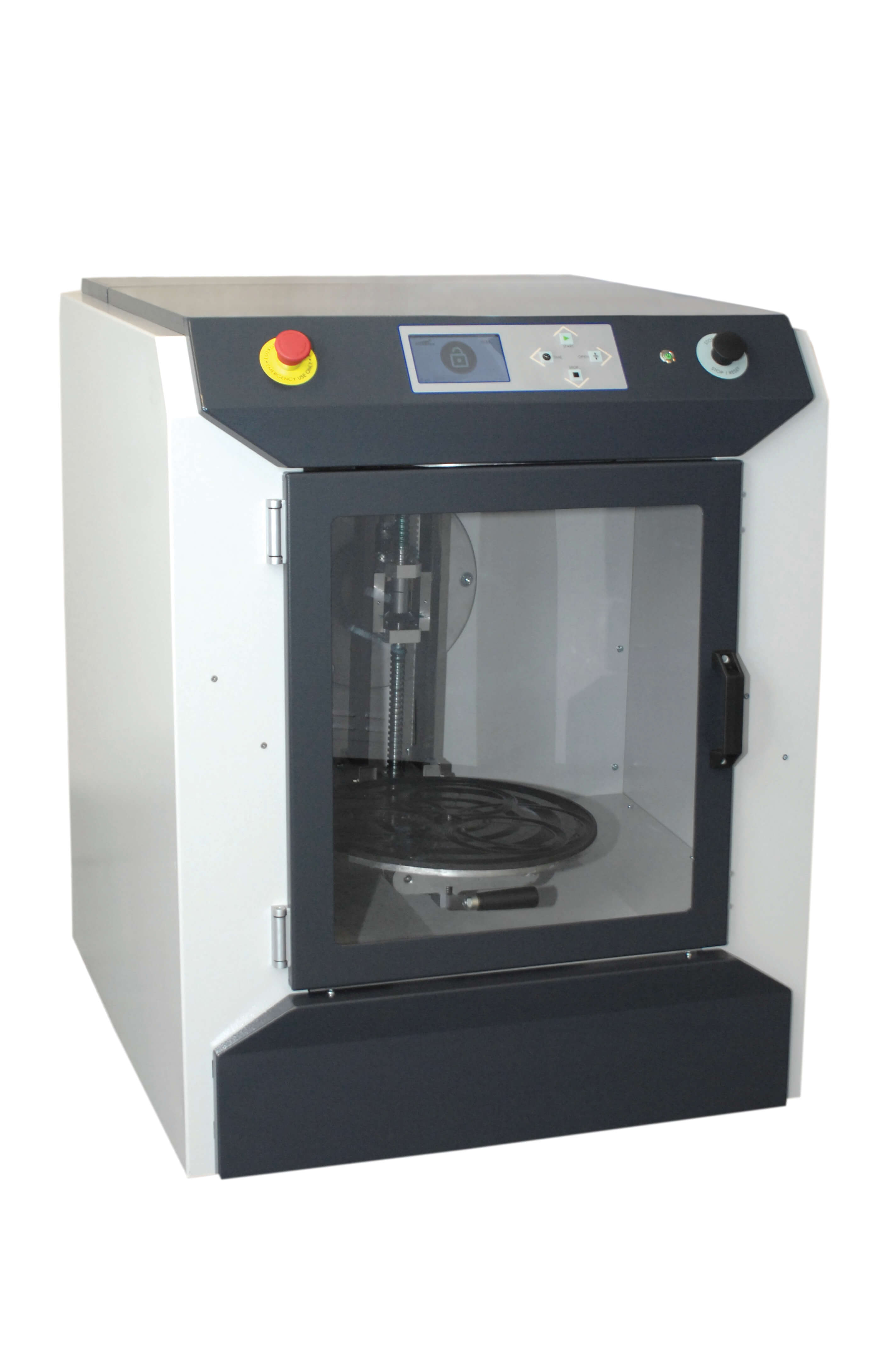

CHAMELEON M2M

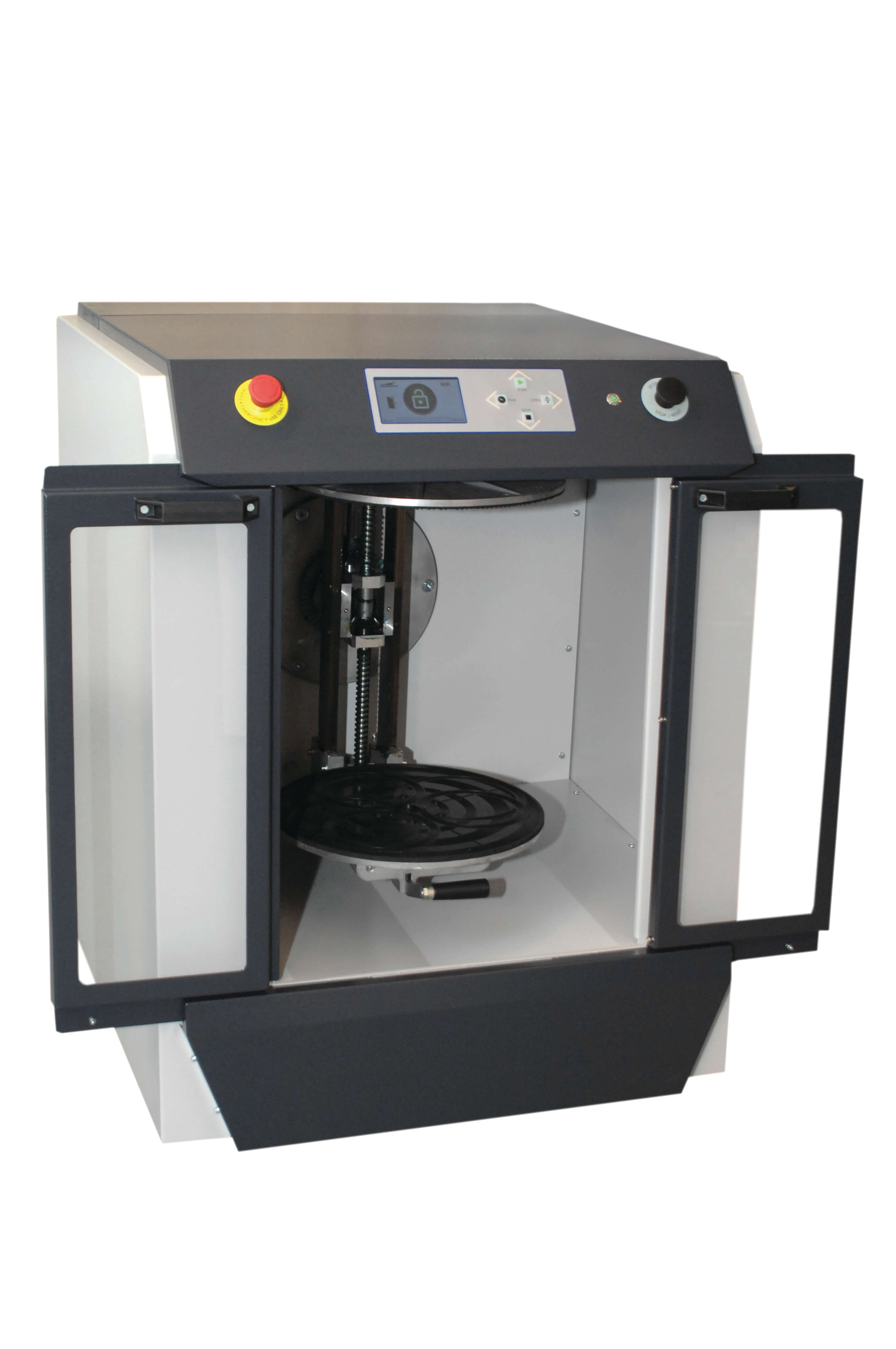

CHAMELEON M2M Slide door

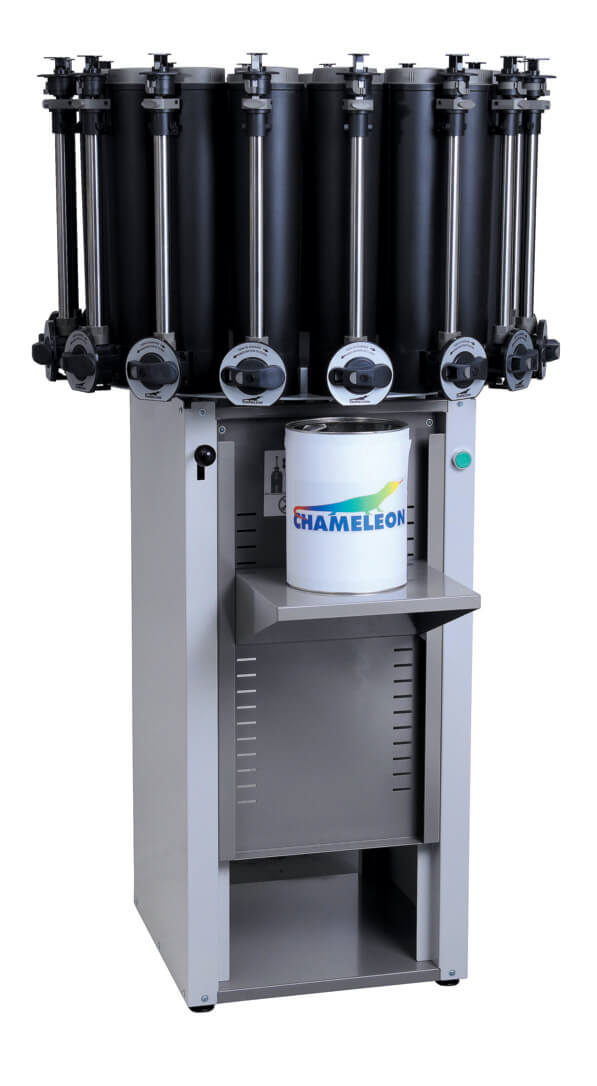

CHAMELEON Easy Colour Manual Dispenser

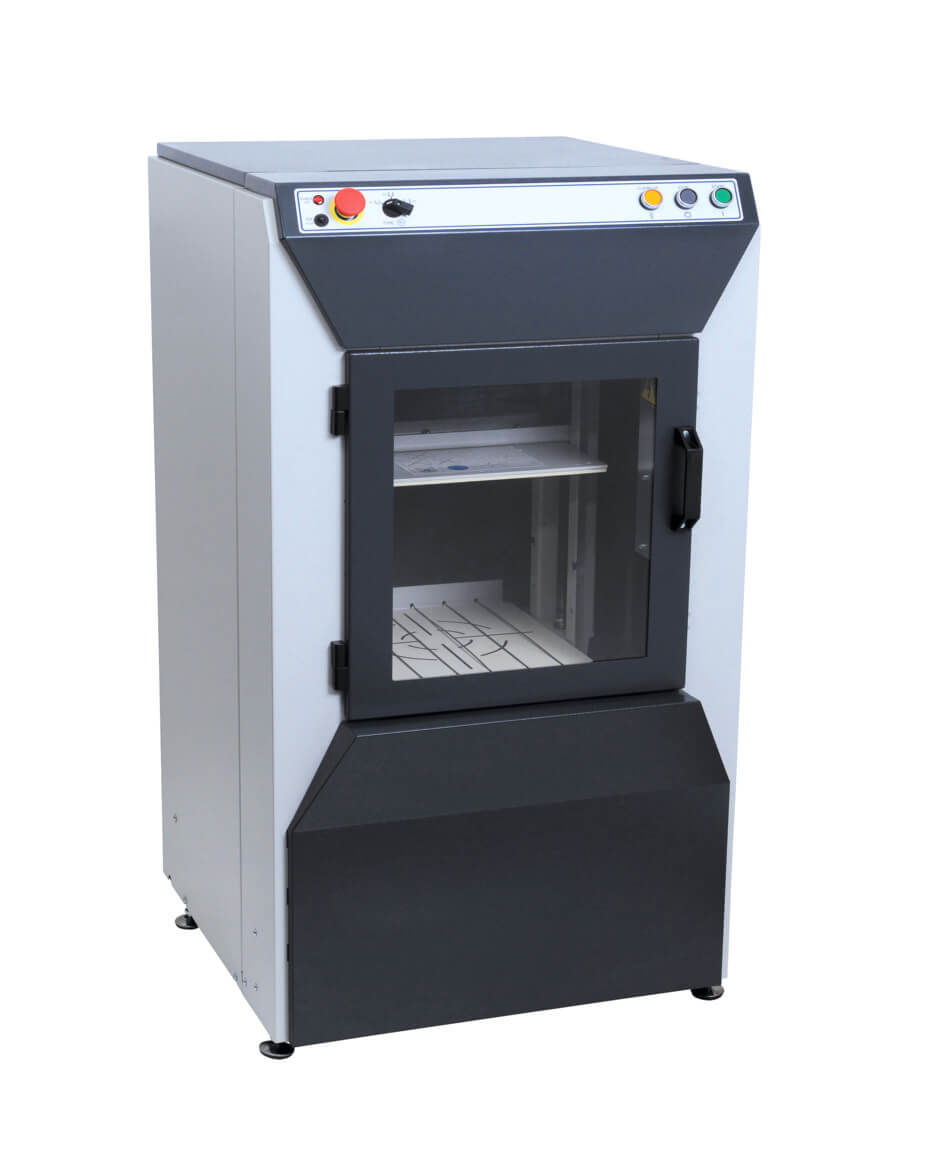

CHAMELEON eShake

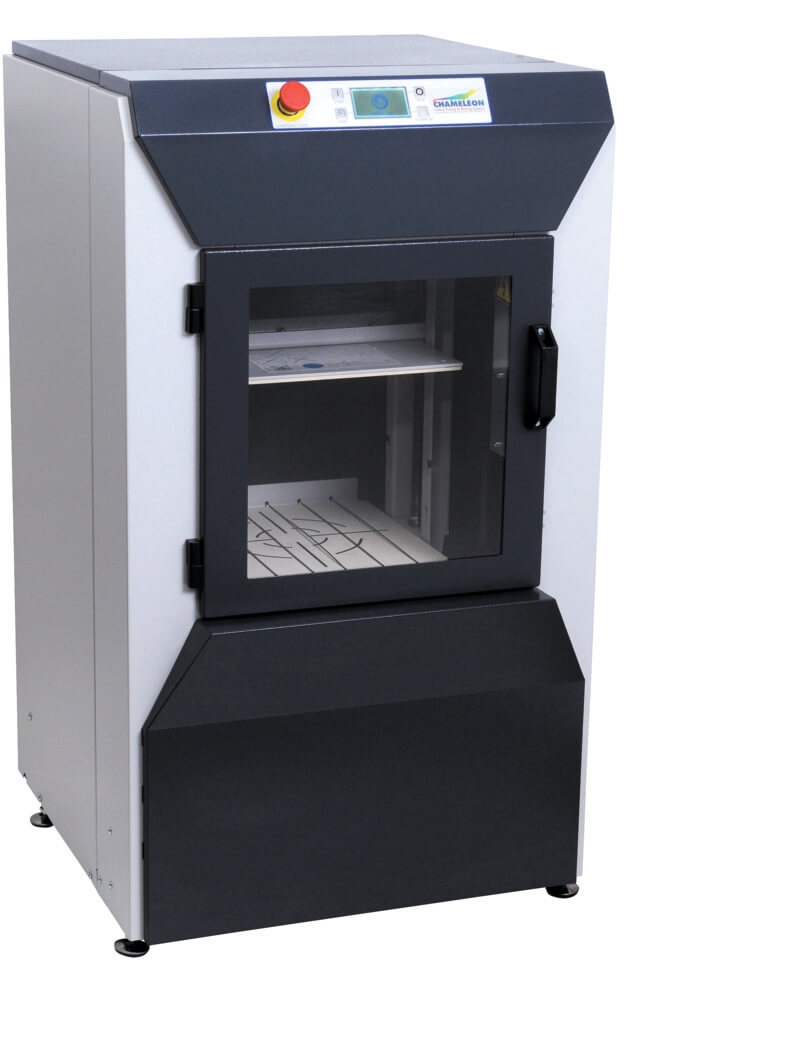

CHAMELEON iShake

SHAKERS & GIROSCOPIC MIXERS

Difference between shakers and mixers is in their movement. This equipment is strongly connected to the dispensers. After dosing colorants in the base, you must homogenize the paint to get desired shade.

For easier decision what is best for our customer, you can check table below.

Shaker Giroscopic mixer
Mixing range 5 – 40 cm /40 kg 8.6 – 48 cm / 40 kg
Mixing more cans at once
High viscosity product (plasters)
Can < 10L (< 22 cm)
Mixing in the storage – 20L cans

We would like to recommend:

VIBRATIONAL SHAKERS

  • SK 550
  • I shake

GYROSCOPIC MIXERS

  • GA 480
  • I mix M2M
